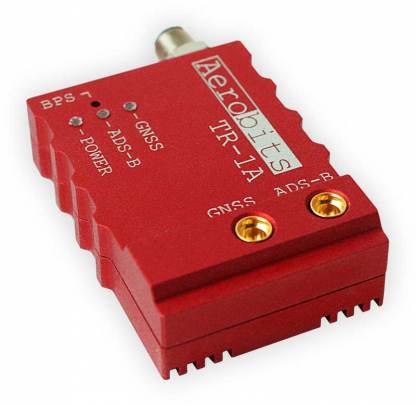

ADS B TRANSCEIVER TR-1A
The TR-1A is the second generation of the smallest ADS-B transceivers on the market and is designed for civil and commercial UAV systems.
The device operates at 1090 MHz and allows receiving and sending ADS-B data with a defined output power of 0.25, 0.5 or 1 watt. No external devices are required to operate the transceiver.
It is equipped with a high-quality multi-GNSS receiver and a pressure sensor. The aluminum body and ESD protection guarantee a high resistance of the device to difficult conditions. TR-1A opens the way to implement the Detect and Avoid algorithms and supports the integration of UAS into the airspace.
Technical specifications
-
Real-time aircraft tracking in the 1090MHz band
-
Patented FPGA In-The-LoopTM technology with the ability to receive thousands of frames per second
-
Integrated high quality GNSS position source and barometric altitude sensor
-
RF output power of 0.25, 0.5 or 1 watt
-
Implemented MAVLink and AEROTM protocol
-
Low power consumption and light weight
-
Simple plug & play operation
-
Programming via AT commands
-
Designed to meet MOPS DO-260B (except output power)
-
Dimension: 35.0 x 25.0 x 8.5mm
-
Traffic monitoring on board
-
position broadcast
-
Implementation of detection and avoidance algorithms
|
frequency band |
1090MHz |
|
input voltage |
5V (+/- 5%) |
|
power consumption |
average 140mA |
|
sensitivity |
-80dBm |
|
RF output power |
Configurable +30dBm (1W), +27dBm (0.5W), +24dBm (0.25W) |
|
ESD protection |
All lines protected |
|
MAV Link (baud) |
115200 bps |
|
AERO (baud) |
15200 bps (AT commands) |
|
main connection |
PXMBNI05RPM04APC |
|
antenna connector |
2 x MMCX |
|
Dimensions |
35.0 x 25.0 x 8.5mm |
|
Weight (without cables and antennas) |
14 grams |
