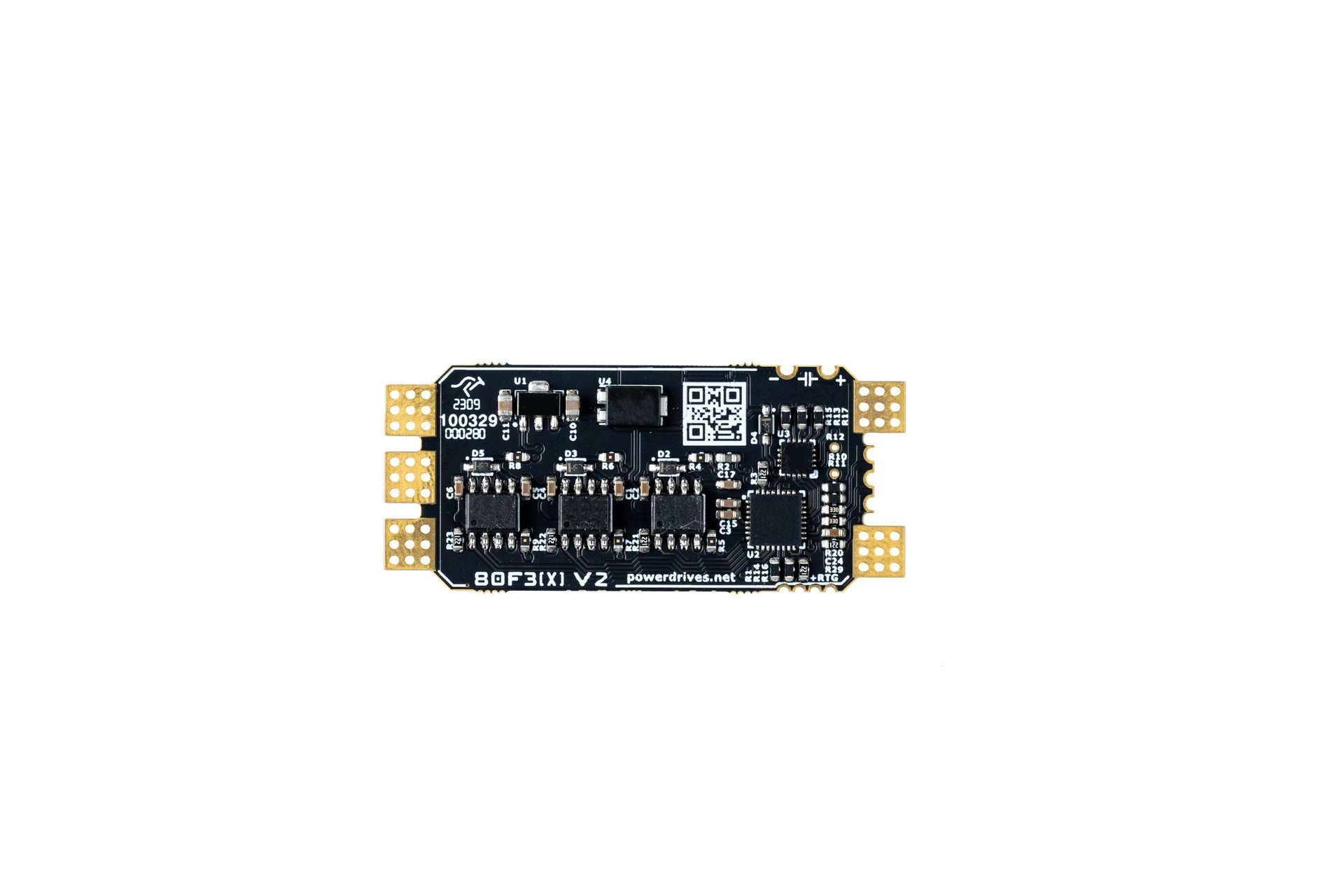

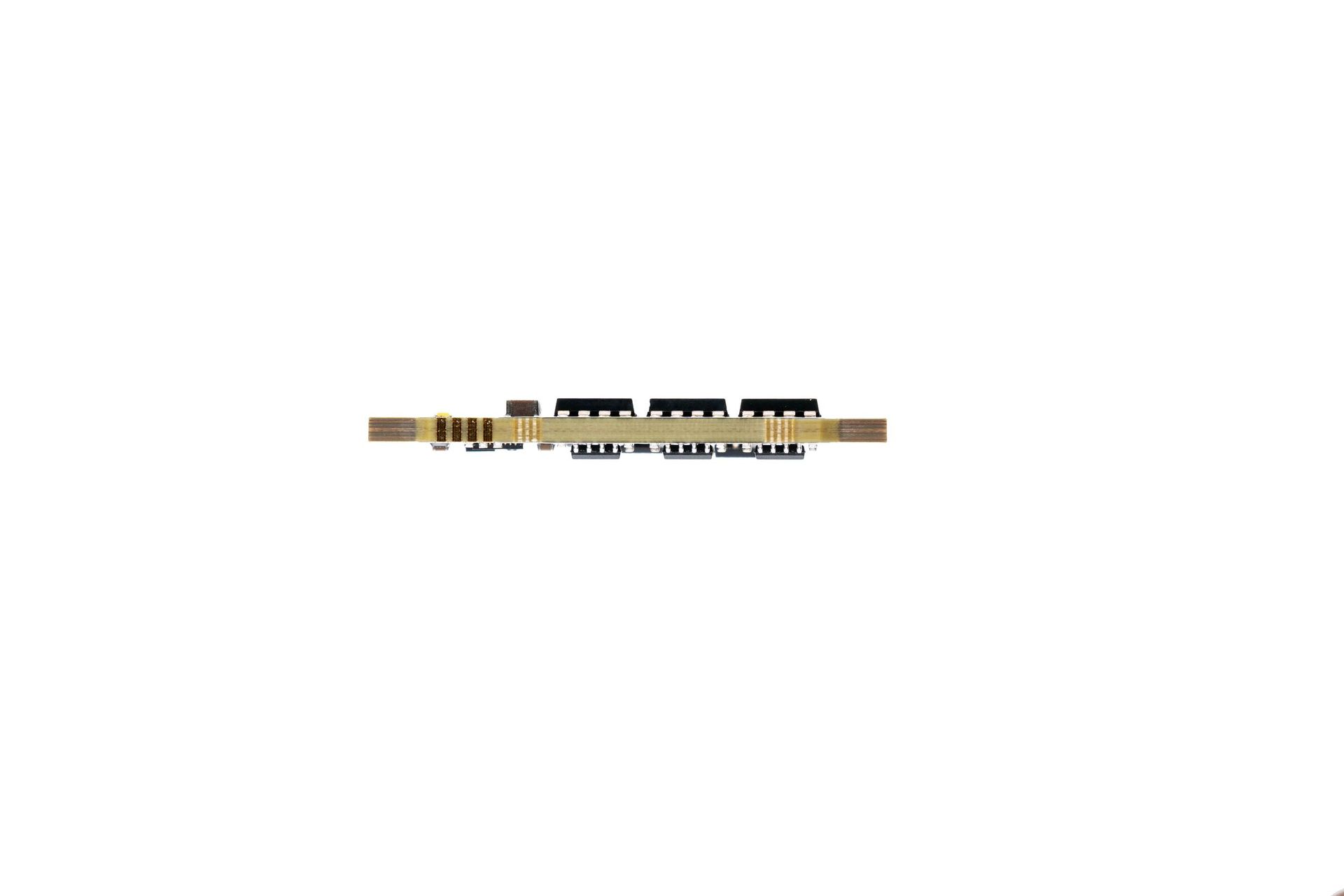

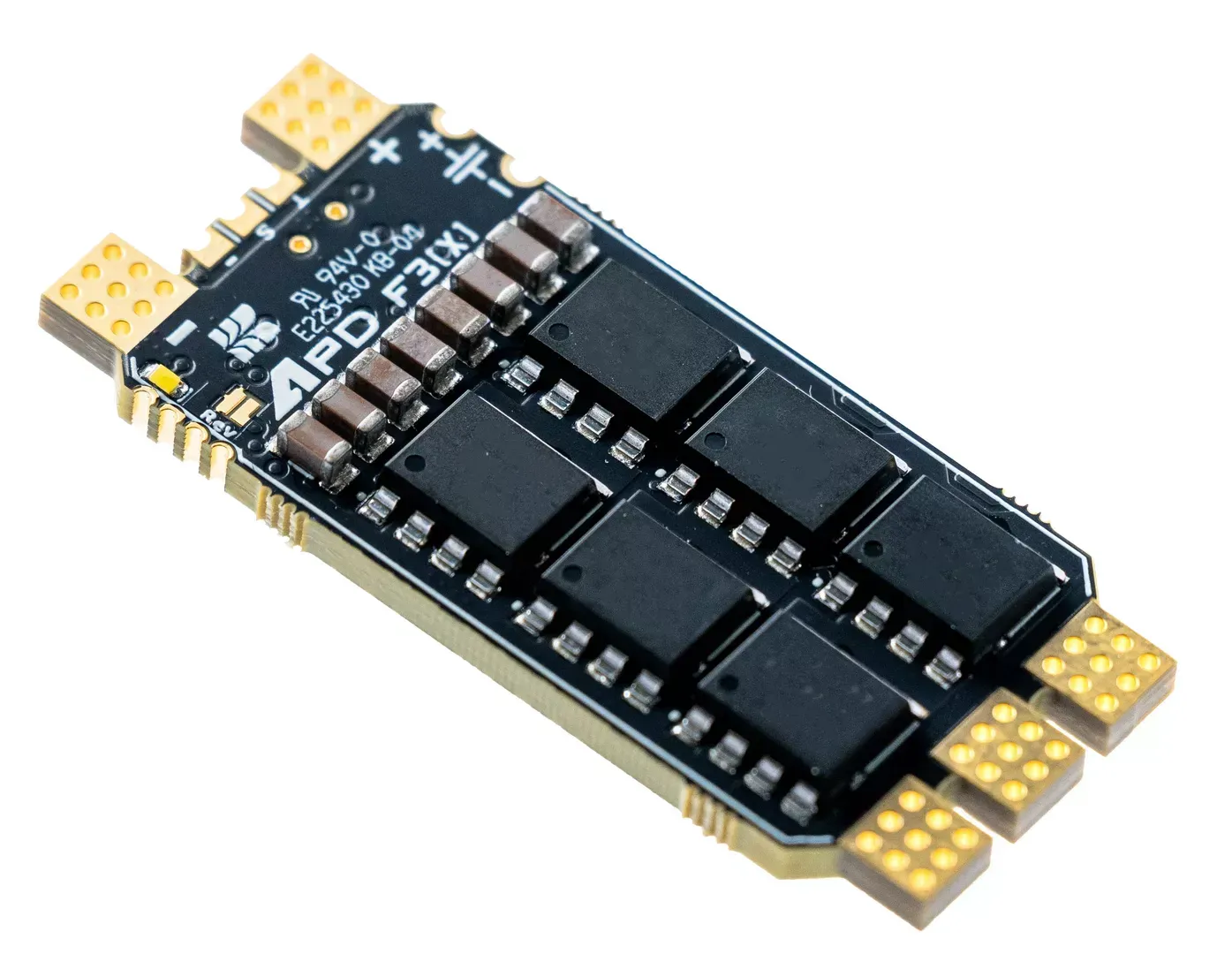

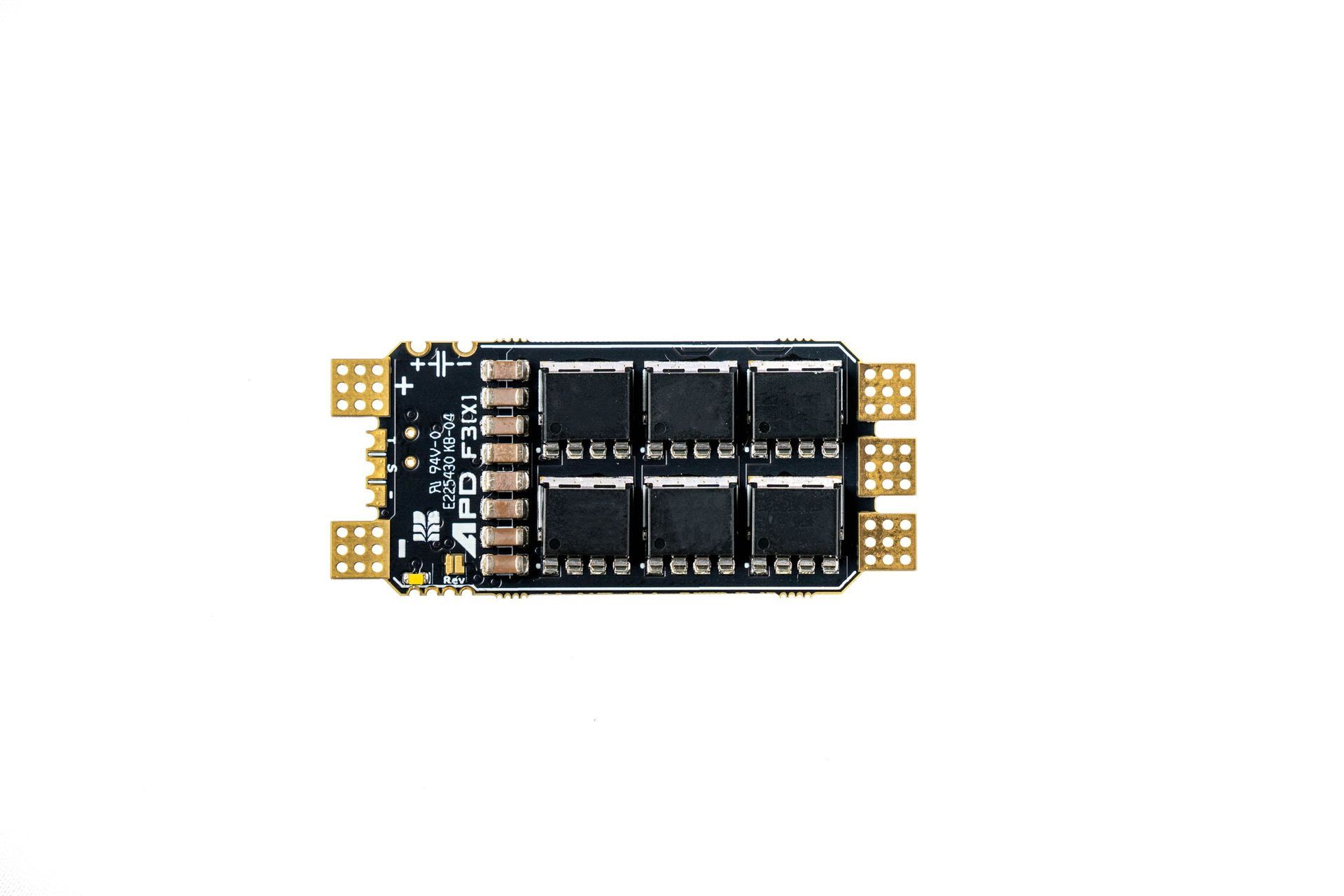

The improved F_Series 80F3[X] ESCs. Building upon our trusted ARM 32-bit architecture, the V2 release features introduce a number of highly requested features into the product range, including configuration options, Bi-Directional DShot, and UART overvoltage protection. The 80F3[X]v2 ESCs are drop-in replaceable to 80F3[X] units.

As before, existing features include PWM-frequency dithering and Active Phase-Current Demagnetisation, allowing for smooth control with virtually all powertrain combinations with peak power outputs of up to 4.7 kW.

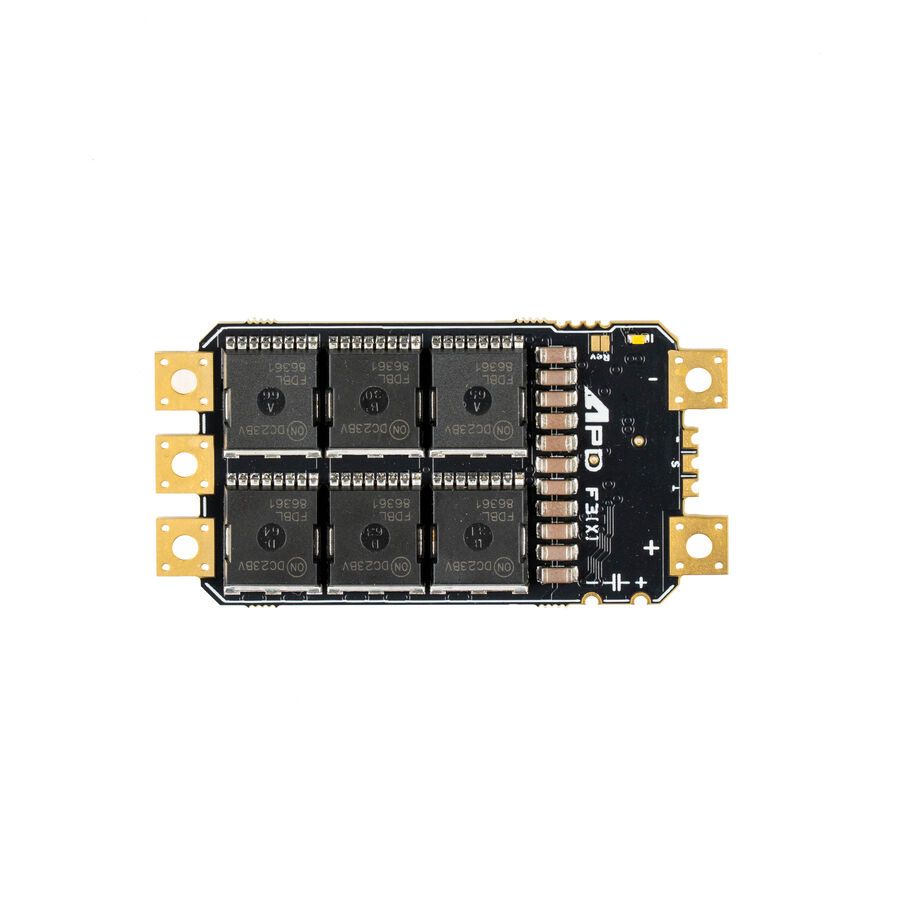

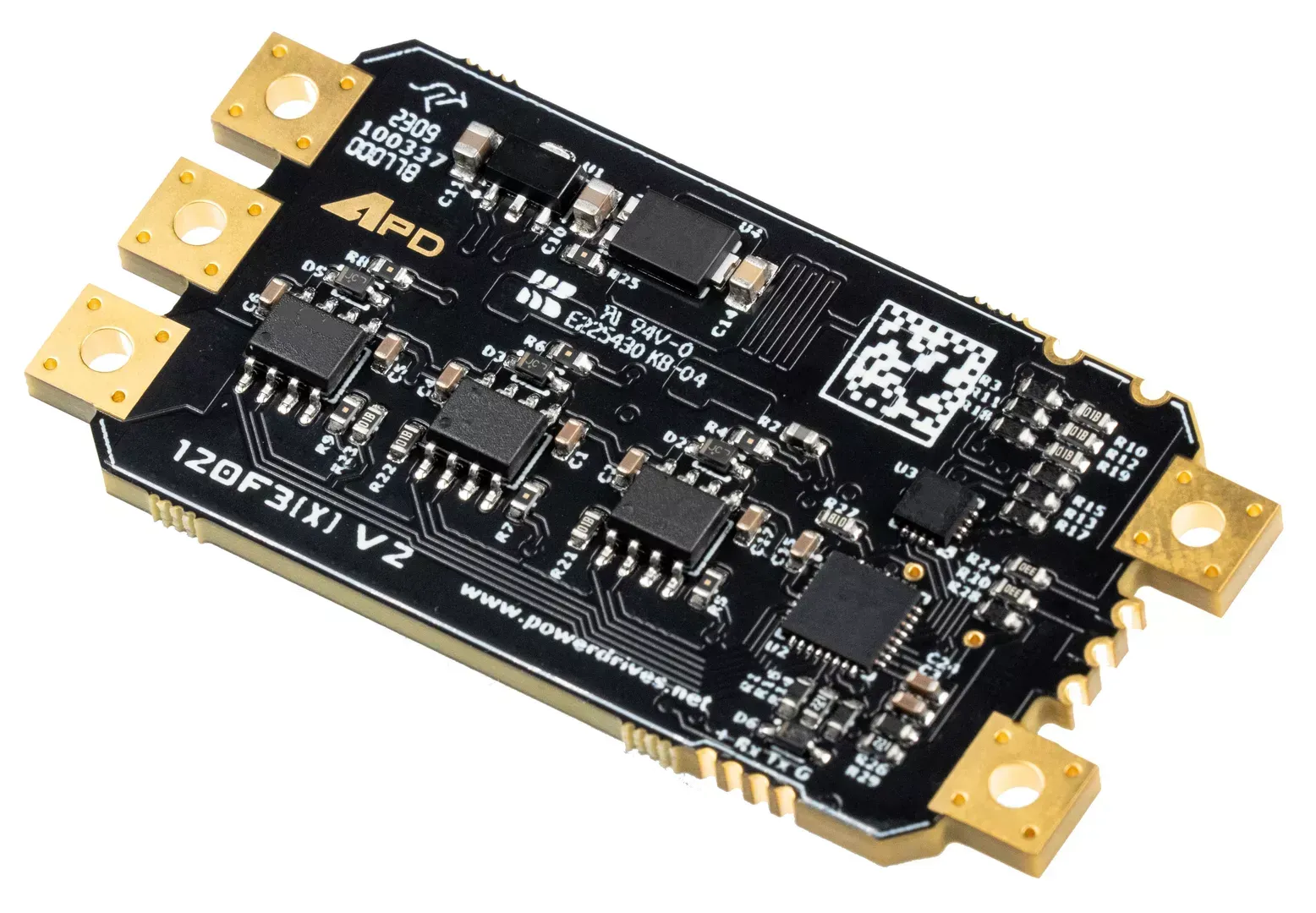

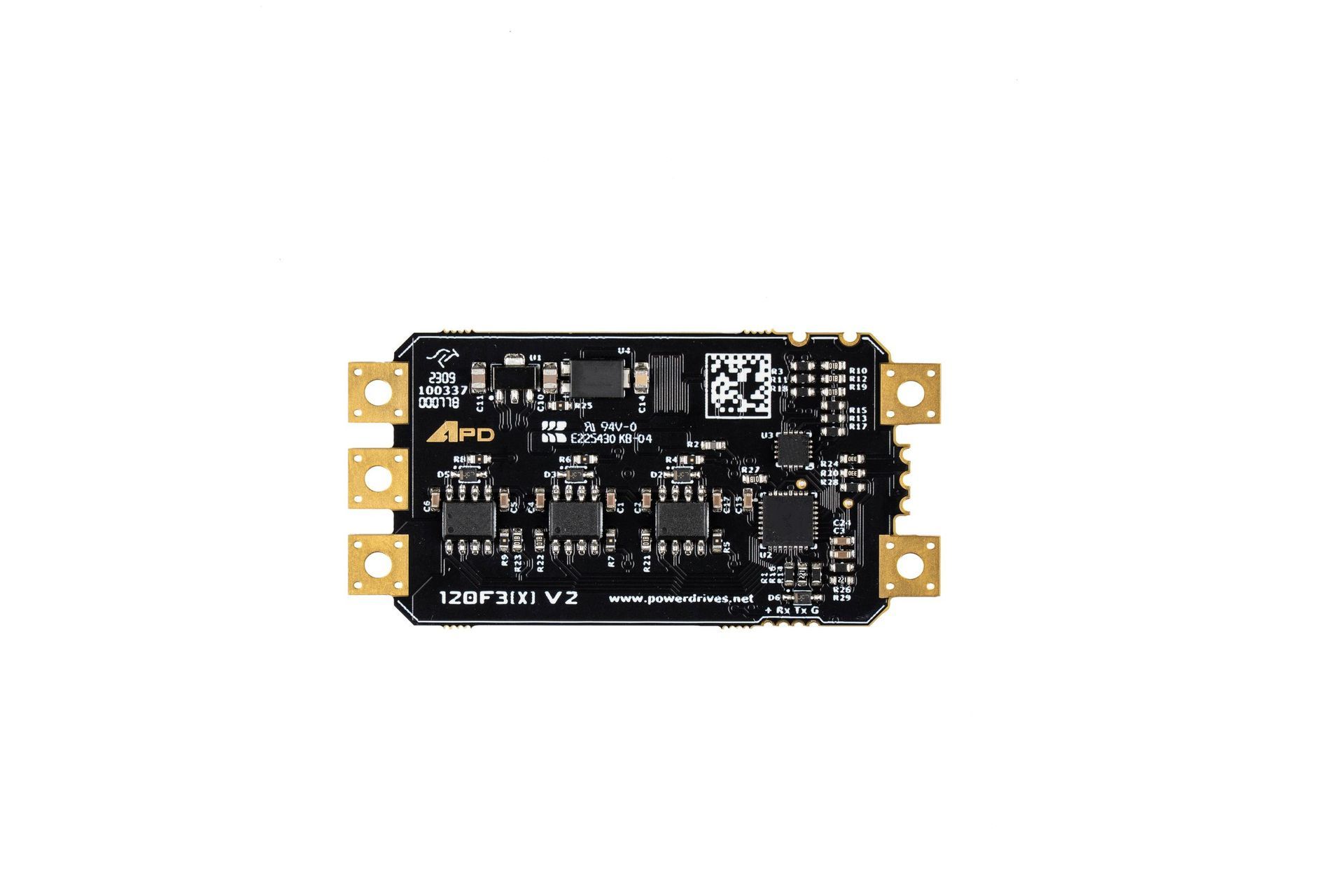

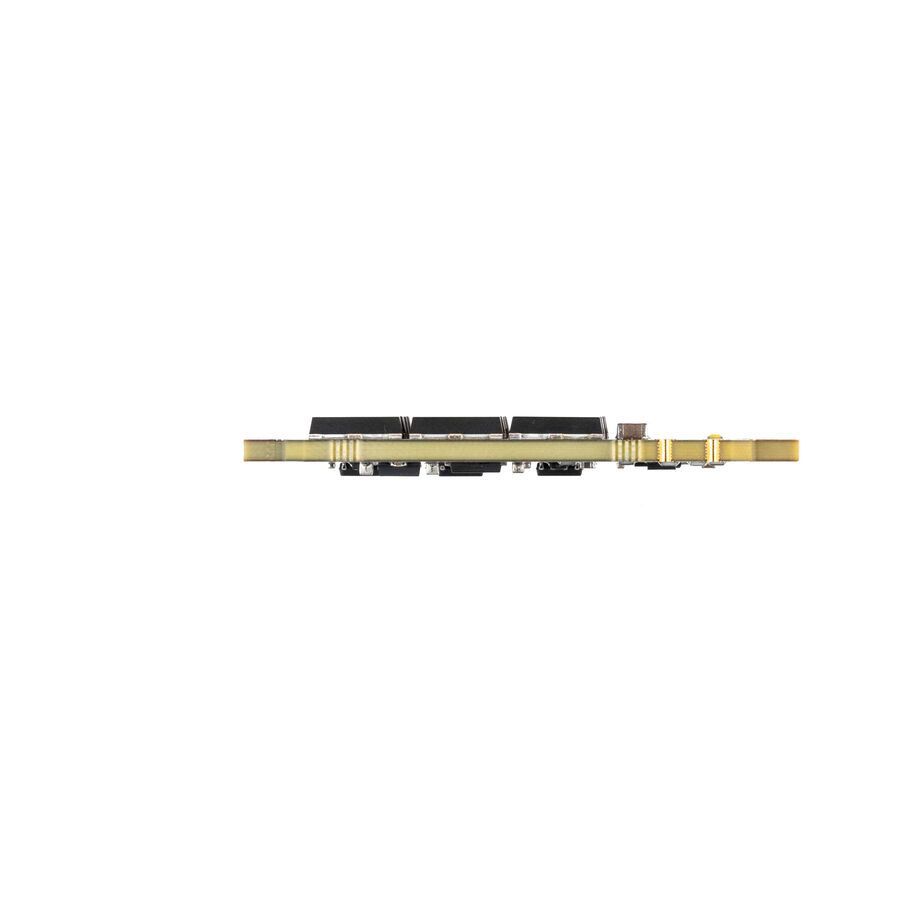

The improved F_Series 120F3[X] ESCs. Building upon our trusted ARM 32-bit architecture, the V2 release features introduce a number of highly requested features into the product range, including configuration options, Bi-Directional DShot, and UART overvoltage protection.

The 120F3[X]v2 ESCs are drop-in replaceable to 120F3[X] units. As before, existing features include PWM-frequency dithering and Active Phase-Current Demagnetisation, allowing for smooth control with virtually all powertrain combinations with peak power outputs of up to 9 kW.

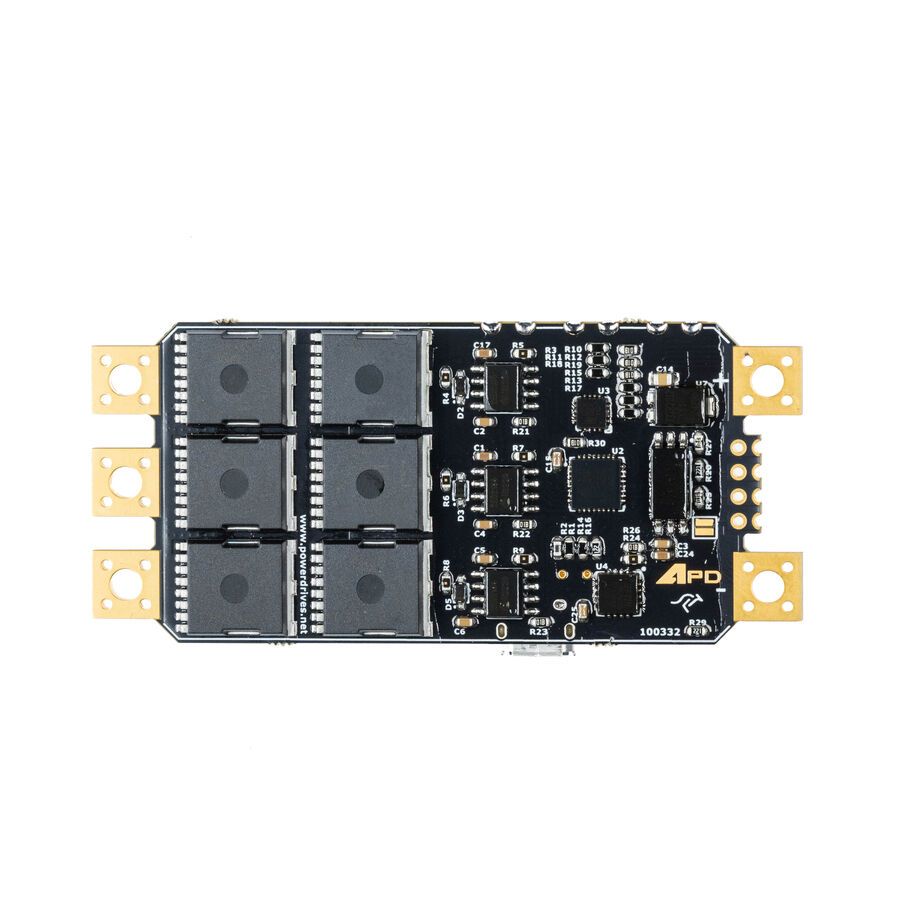

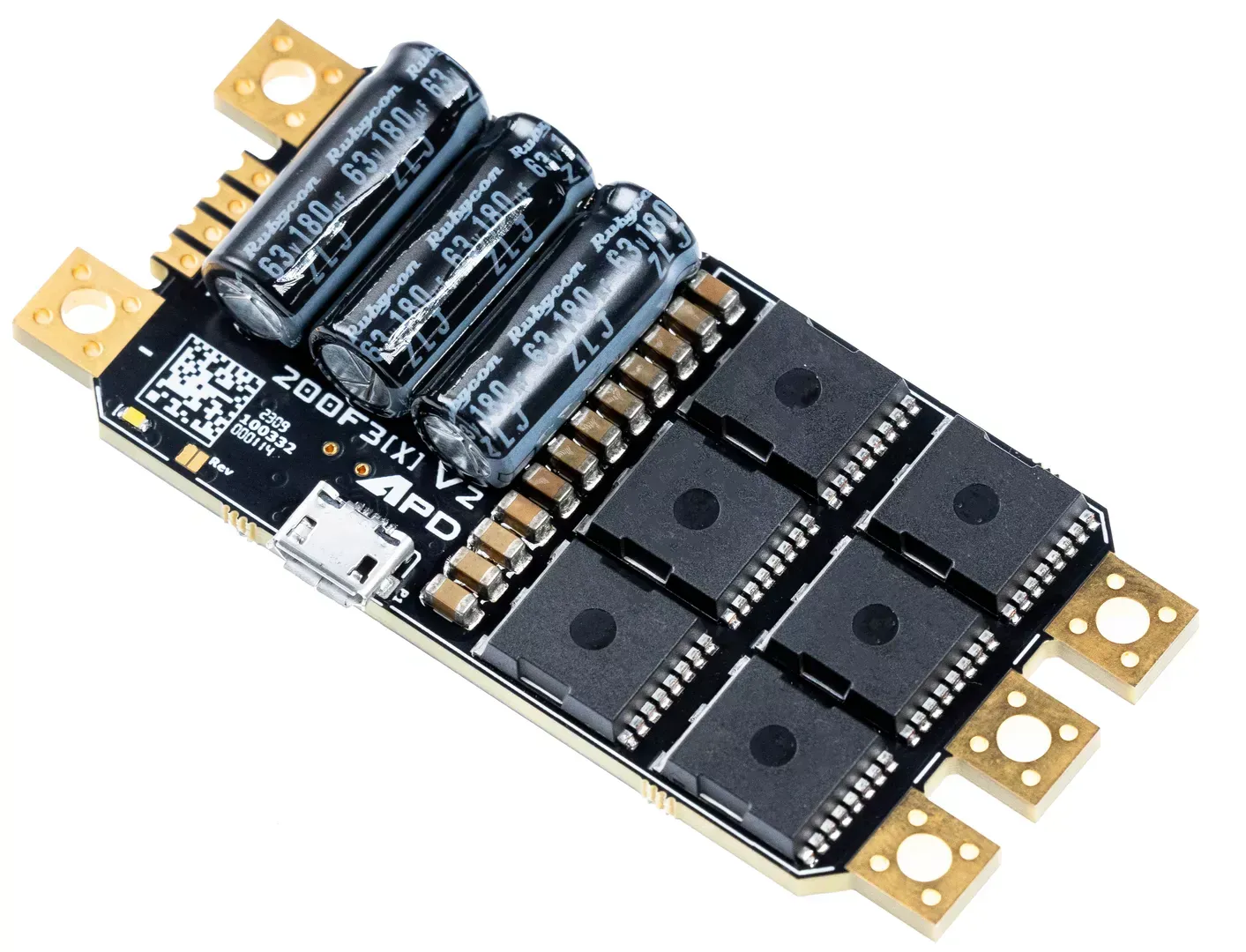

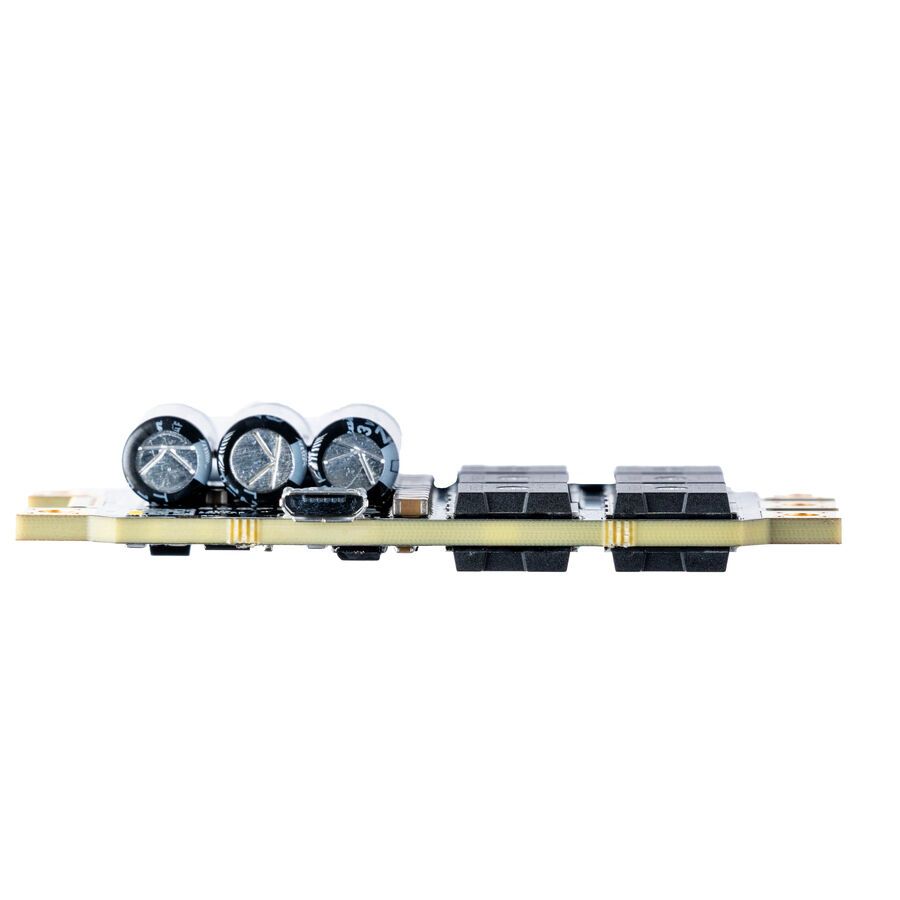

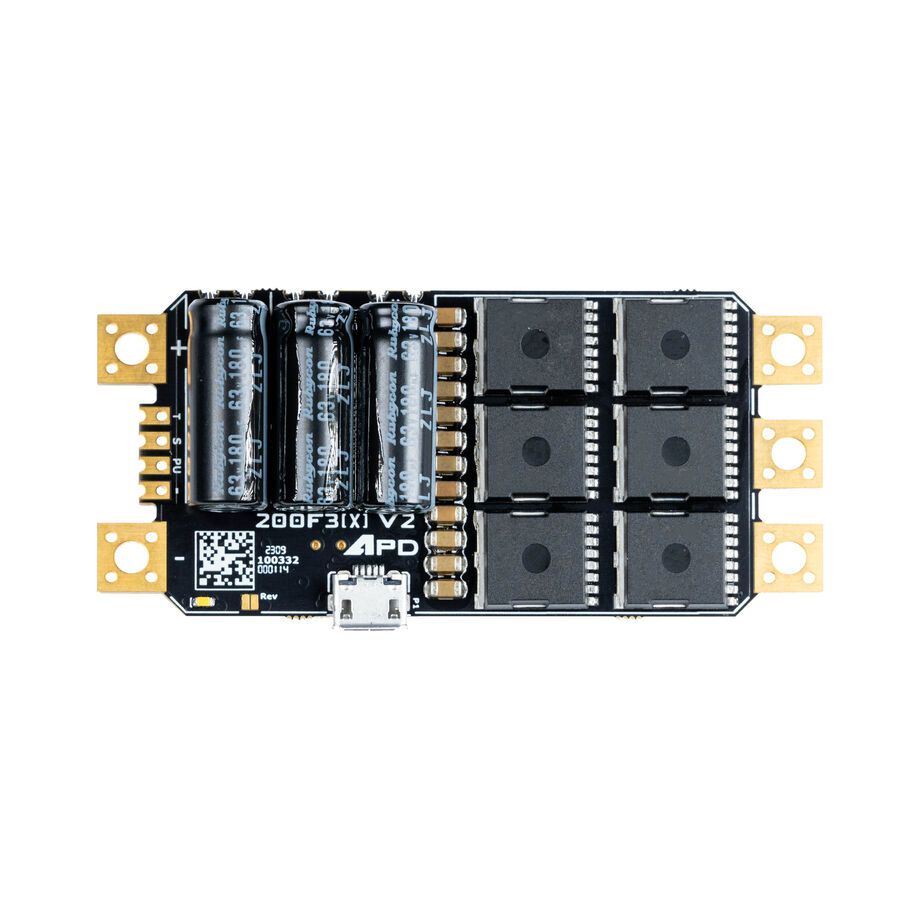

The improved F_Series 200F3[X] ESCs. Building upon our trusted ARM 32-bit architecture, the V2 release features introduce a number of highly requested features into the product range, including configuration options and additional drive modes. The 200F3[X]v2 ESCs are drop-in replaceable to 200F3[X] units.

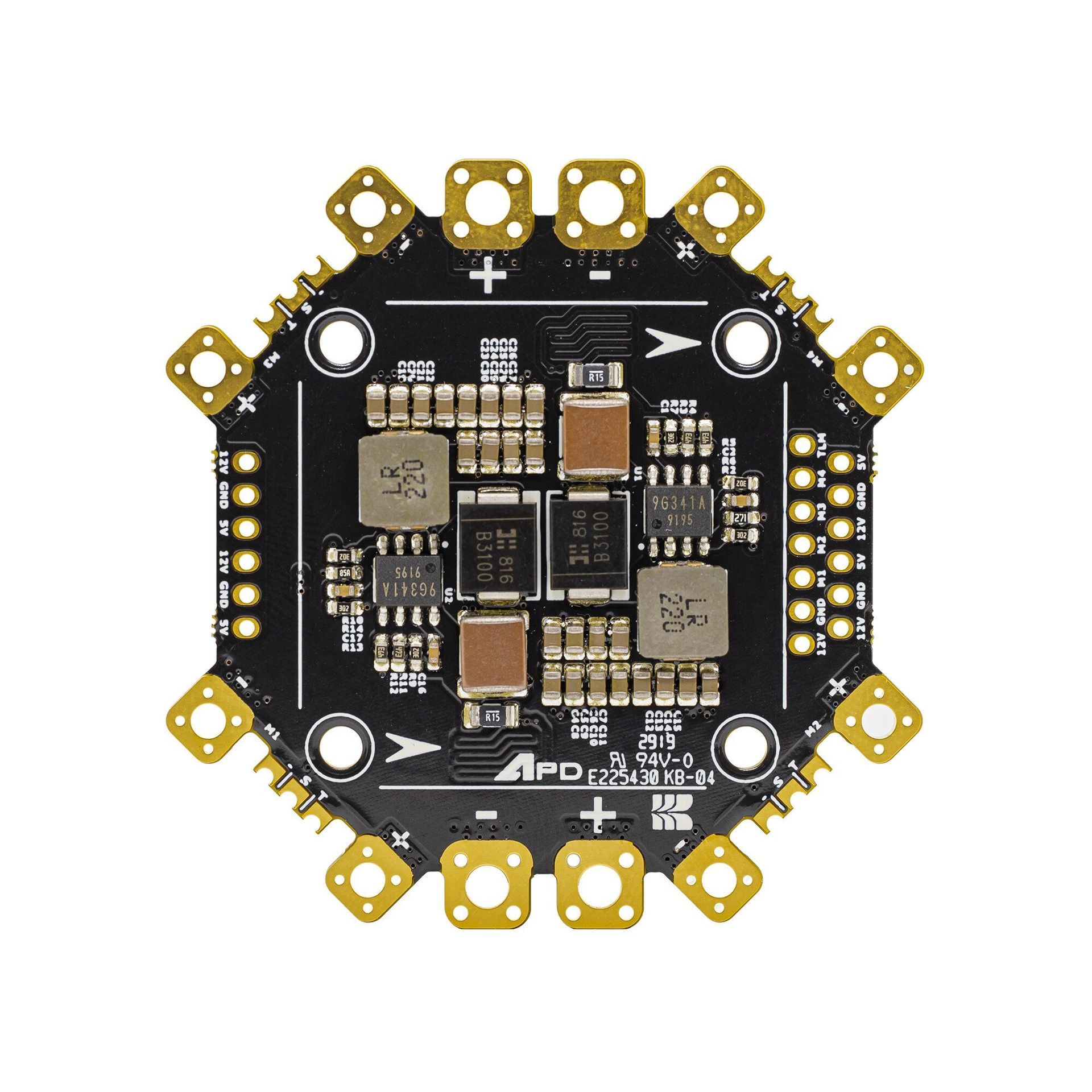

The PDB500 is designed for high voltage and high current applications. It consists of 8 layers of heavy copper to sustain maximum current demand whilst dissipating minimal heat. This PDB can sustain up to 125A continuous to each ESC leg. Also features 12V 3 Amp and 5V 3 Amp regulators with a maximum of 14S (60V) input.
Signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels.

The PDB500 has double-sided main input power pads which can be soldered or bolted to (not recommended for high power). It allows for flight controller mounting with standard 30.5mm x 30.5mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.
Manufactured using ISOLA 185HR high-performance dielectric glass fibre to sustain continuous high-temperature scenarios.

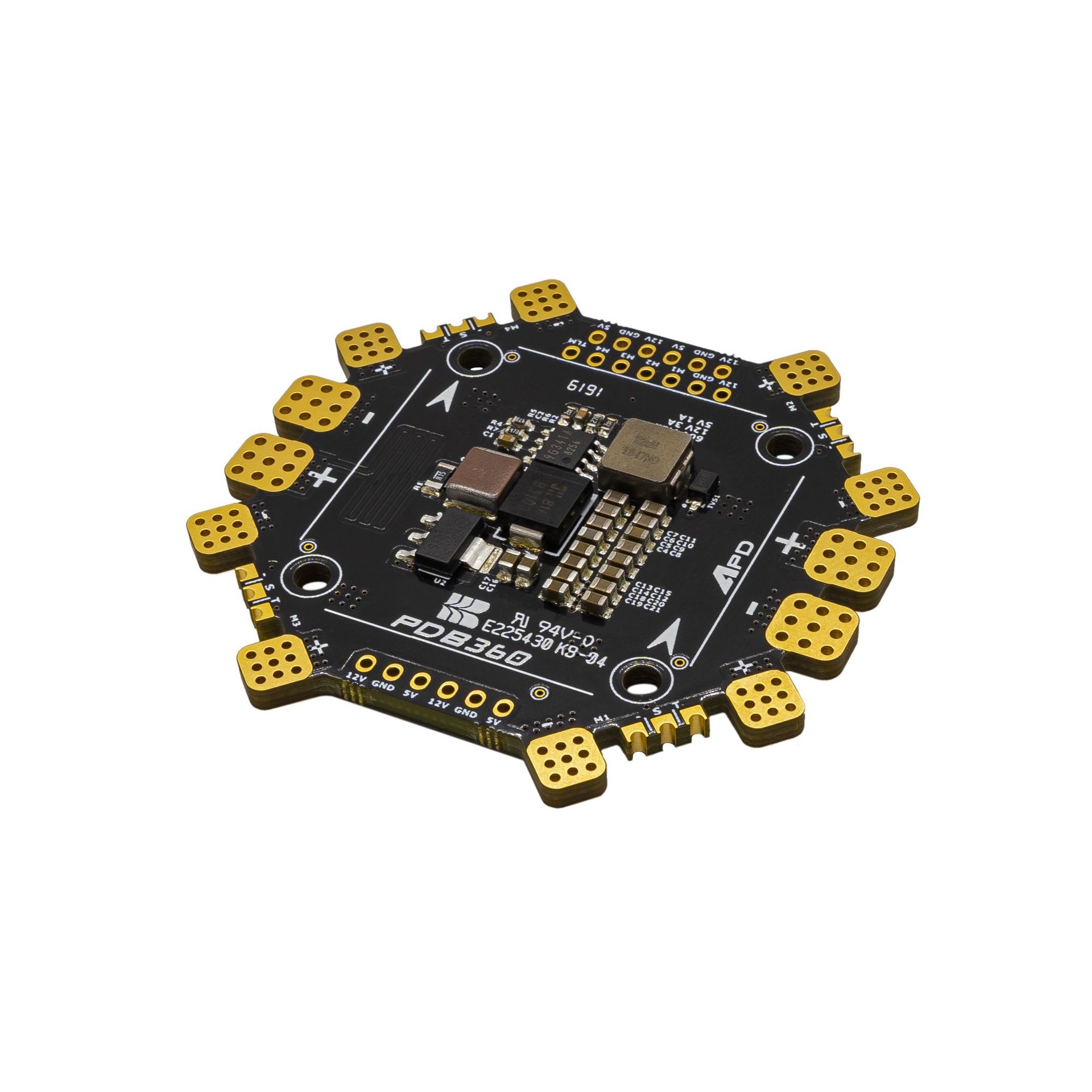

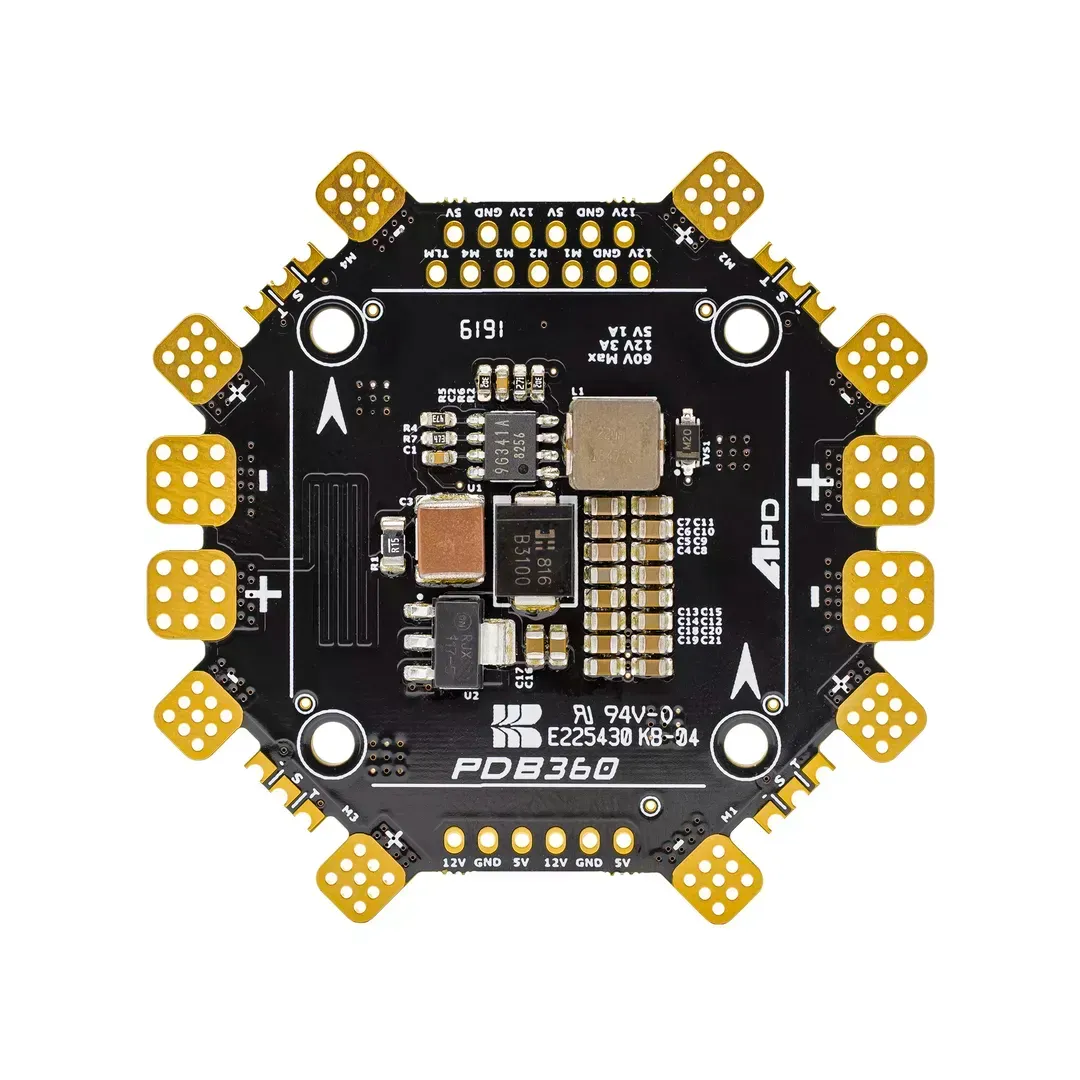

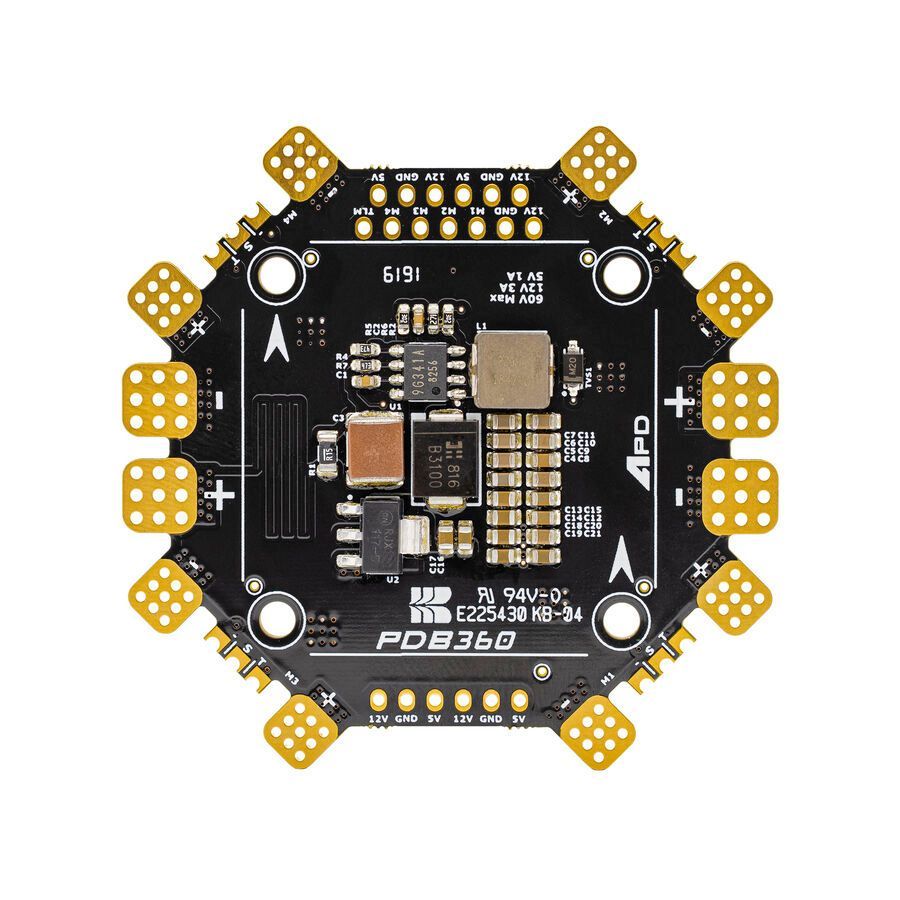

The PDB360 is designed for high voltage and high current applications. It consists of 8 heavy copper layers to sustain maximum current demand whilst dissipating minimal heat. This PDB can sustain up to 90 A continuous to each ESC leg. Also features 12 V 3 A and 5V 1 A regulators with a maximum of 8S (34 V) input.
Signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels.

The PDB360 has double-sided main input power pads which can be soldered or bolted to (not recommended for high power). It allows for flight controller mounting with standard 30.5 mm x 30.5 mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.
Manufactured using ISOLA 185HR high-performance dielectric glass fibre to sustain continuous high-temperature scenarios.

It consists of 8 layers of heavy copper to sustain maximum current demand whilst dissipating minimal heat. This PDB can sustain up to 125A continuous to each ESC leg. Also features 12V 3 Amp and 5V 3 Amp regulators with a maximum of 14S (60V) input.

Signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels.

The PDB500 has double-sided main input power pads which can be soldered or bolted to (not recommended for high power). It allows for flight controller mounting with standard 30.5mm x 30.5mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.

Manufactured using ISOLA 185HR high-performance dielectric glass fibre to sustain continuous high-temperature scenarios.

It consists of 8 heavy copper layers to sustain maximum current demand whilst dissipating minimal heat. This PDB can sustain up to 90 A continuous to each ESC leg. Also features 12 V 3 A and 5V 1 A regulators with a maximum of 8S (34 V) input.

Signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels.

The PDB360 has double-sided main input power pads which can be soldered or bolted to (not recommended for high power). It allows for flight controller mounting with standard 30.5 mm x 30.5 mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.

Manufactured using ISOLA 185HR high-performance dielectric glass fibre to sustain continuous high-temperature scenarios.
